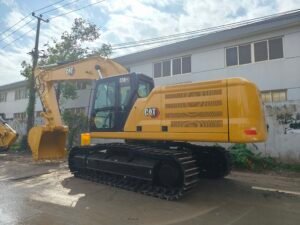

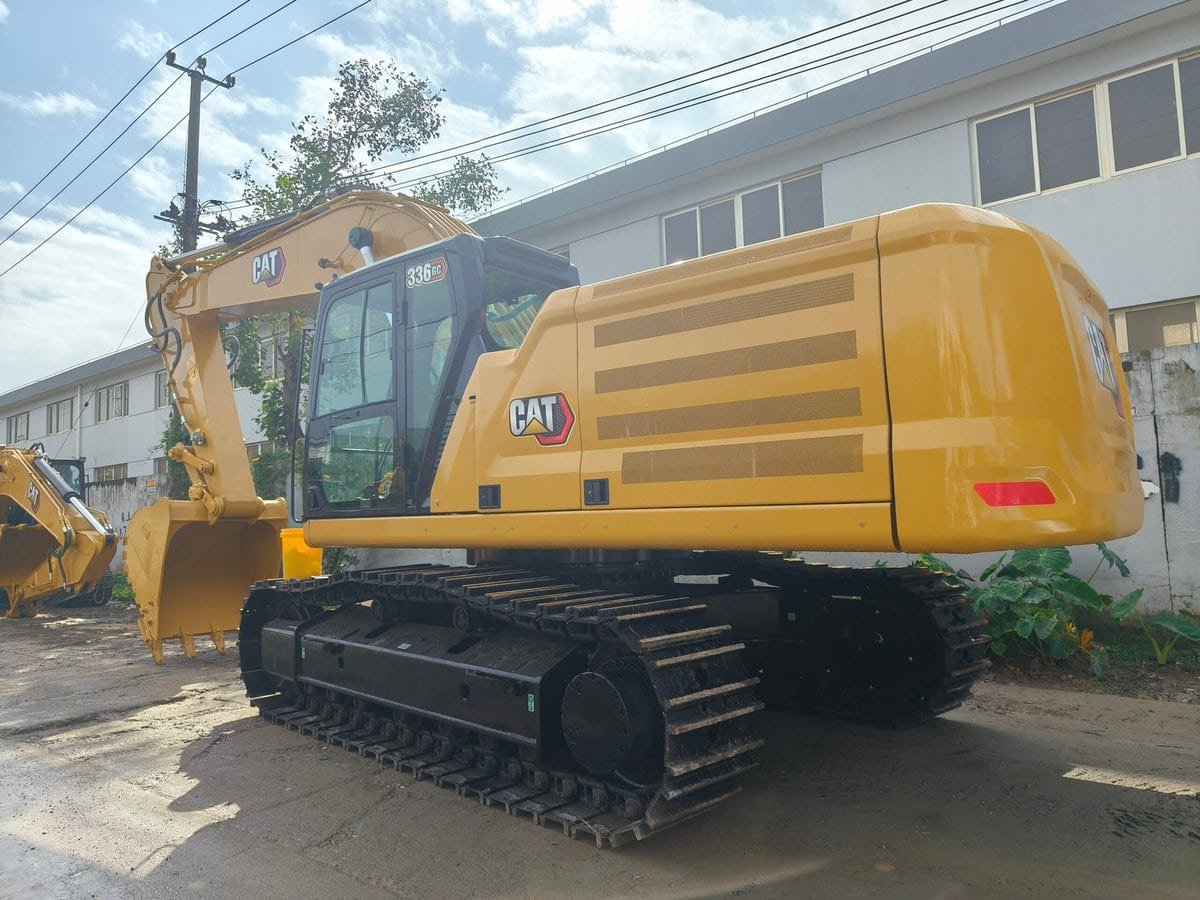

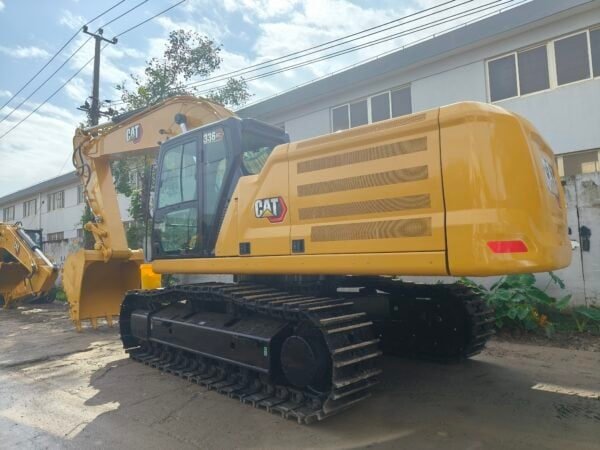

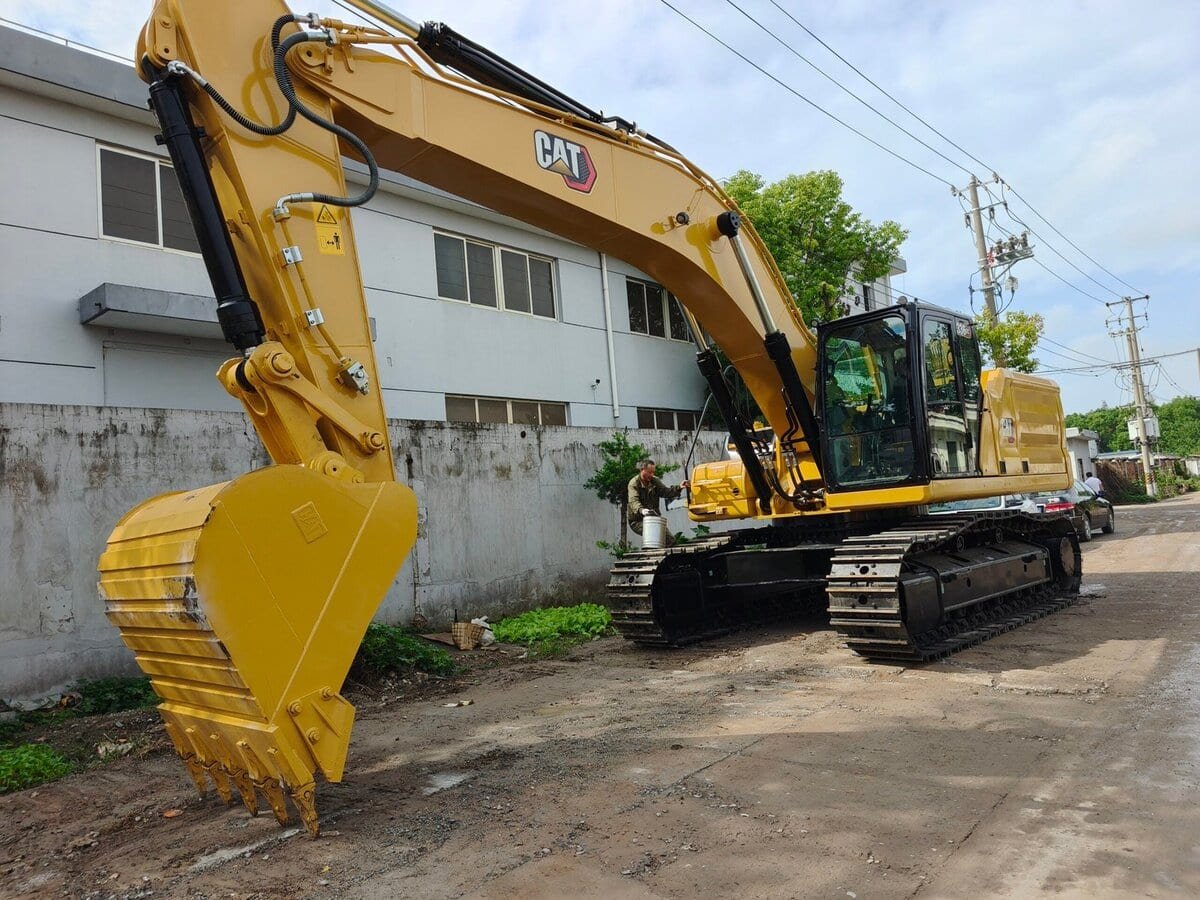

The CAT 336 GC is a large hydraulic excavator designed to deliver high productivity with lower hourly operating costs. Here is an overview of its key specifications and features.
| Specification | Details |
|---|---|
| Operating Weight | 33,900 kg – 36,370 kg (74,800 lb) |
| Standard Bucket Capacity | 1.88 m³ (2.46 yd³) |
| Engine Model | Cat C7.1 |
| Rated Power | 195 kW (259 hp) – 195 kW |
| Maximum Digging Depth | 7,520 mm (24.7 ft) |
| Maximum Reach at Ground Level | 11,050 mm (36.3 ft) |
| Bucket Digging Force (ISO) | 197 kN |
| Stick Digging Force (ISO) | 148 kN |
| Fuel Tank Capacity | 600 L (158.5 gal) |
| Hydraulic System Flow | 559 L/min |
The CAT 336 GC is engineered to provide a balance of performance, efficiency, and low cost of ownership for a variety of heavy-duty excavation and loading applications.
Efficiency and Fuel Economy: The machine is designed to be up to 5% more fuel-efficient than previous models like the 336D2. It features an “Intelligent Mode” that automatically matches engine and hydraulic power to the digging conditions, providing maximum power when needed and saving fuel when it’s not.

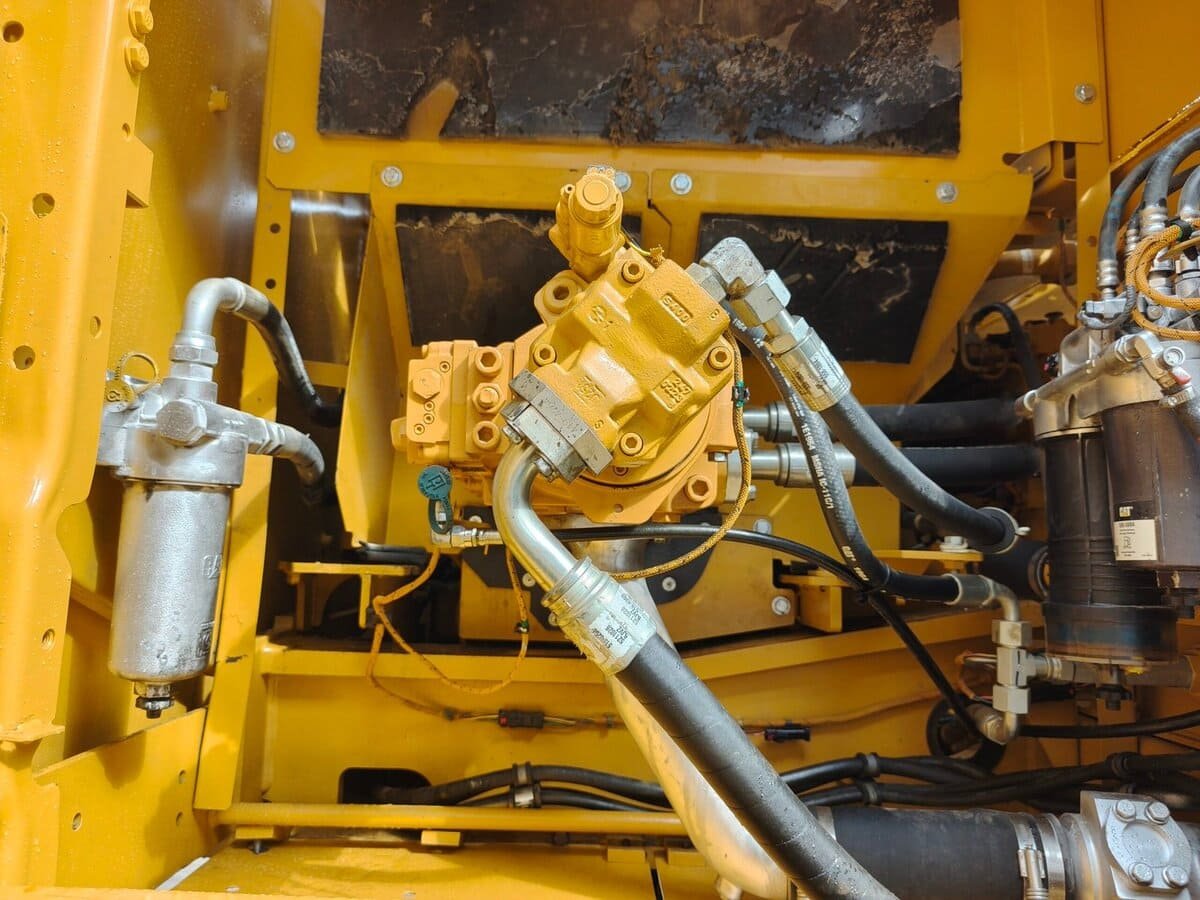

Power and Hydraulic System: The Cat C7.1 engine meets various global emission standards (equivalent to U.S. EPA Tier 3/EU Stage IIIA). The advanced hydraulic system provides responsive control for precise digging, and the Valve Priority function allows for fast light- to medium-duty cycle times.
Contact our sales team to get the latest pricing and inventory information for our machinery. Send us an inquiry now to help you find the right equipment quickly.
